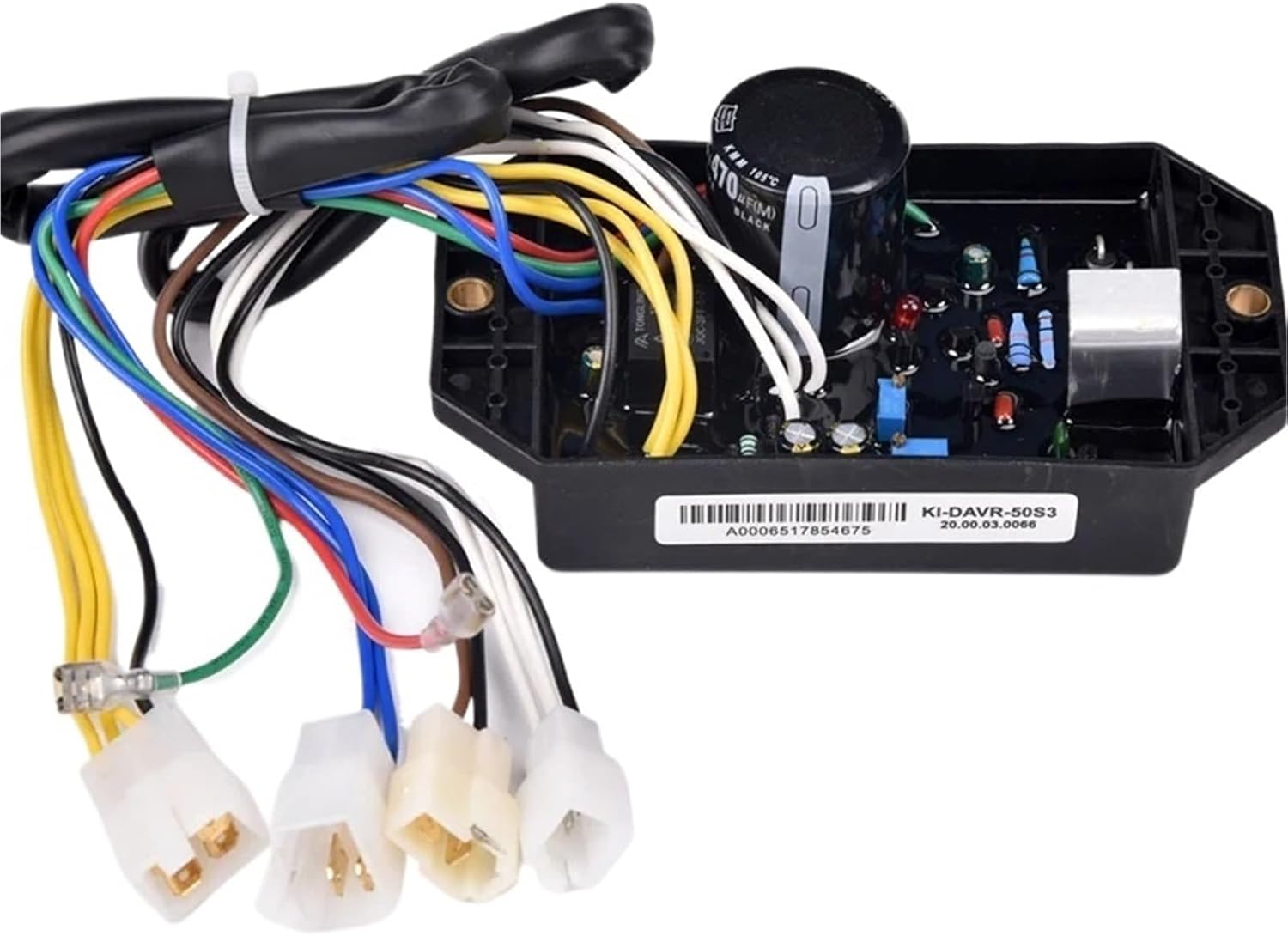

KI-DAVR-50S Automatic Voltage Regulator Diesel Generator Automatic Voltage Regulator 50S3 3 Phase Circuit Diagram(KI-DAVR-50S3)

5kw Diesel Generator Auto Spare Parts KI-DAVR-50S Stabilizer Voltage Regulator 50S3 Automatic Voltage Regulator Circuit DiagramSpecification:Sensing Input/Power inputVoltage:120(90-132VAC) or 240(190-264VAC), 1 phase 2 wireMagnetic field outputVoltage:Max 90VDC at 207VAC inputCurrent:Continuous 4A, intermittent 10A within 10 seconds<;+/-%RMS with 4% engine governingFeatures: * Stability of output voltage±5%<;±1% RMS with 4% engine governing* With intelligent integrated circuit chip control,Automatic circuit protection function* Output current flow automatic stop, automatic stop outside the output voltage is more than 10% of the rated voltage output load is too large or too short will automatically stop==========Model Number : KI-DAVR-50Sis_customized : YesOrigin : Mainland Cetification : ISO9001,Warranty : 1 yearFunction : Automatic Voltage RegulatorQuality Class : A Class Stock : KI-DAVR-50S in stocksize : 17*7.5*10cmWeight : 0.6kg

• KI-DAVR-50S Automatic Voltage Regulator Diesel Generator Automatic Voltage Regulator 50S3 3 Phase Circuit Diagram
